A Must-Have Upgrade for Water Cooling: Alphacool Core Distro Plate

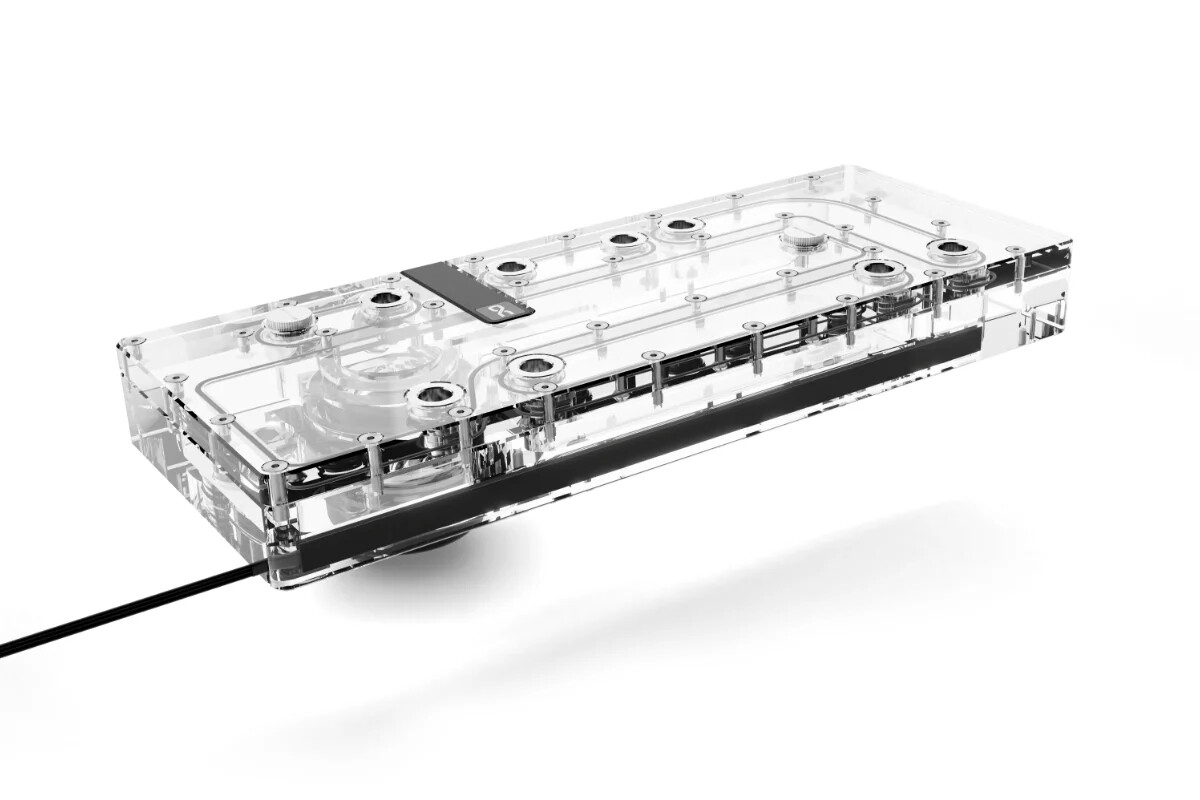

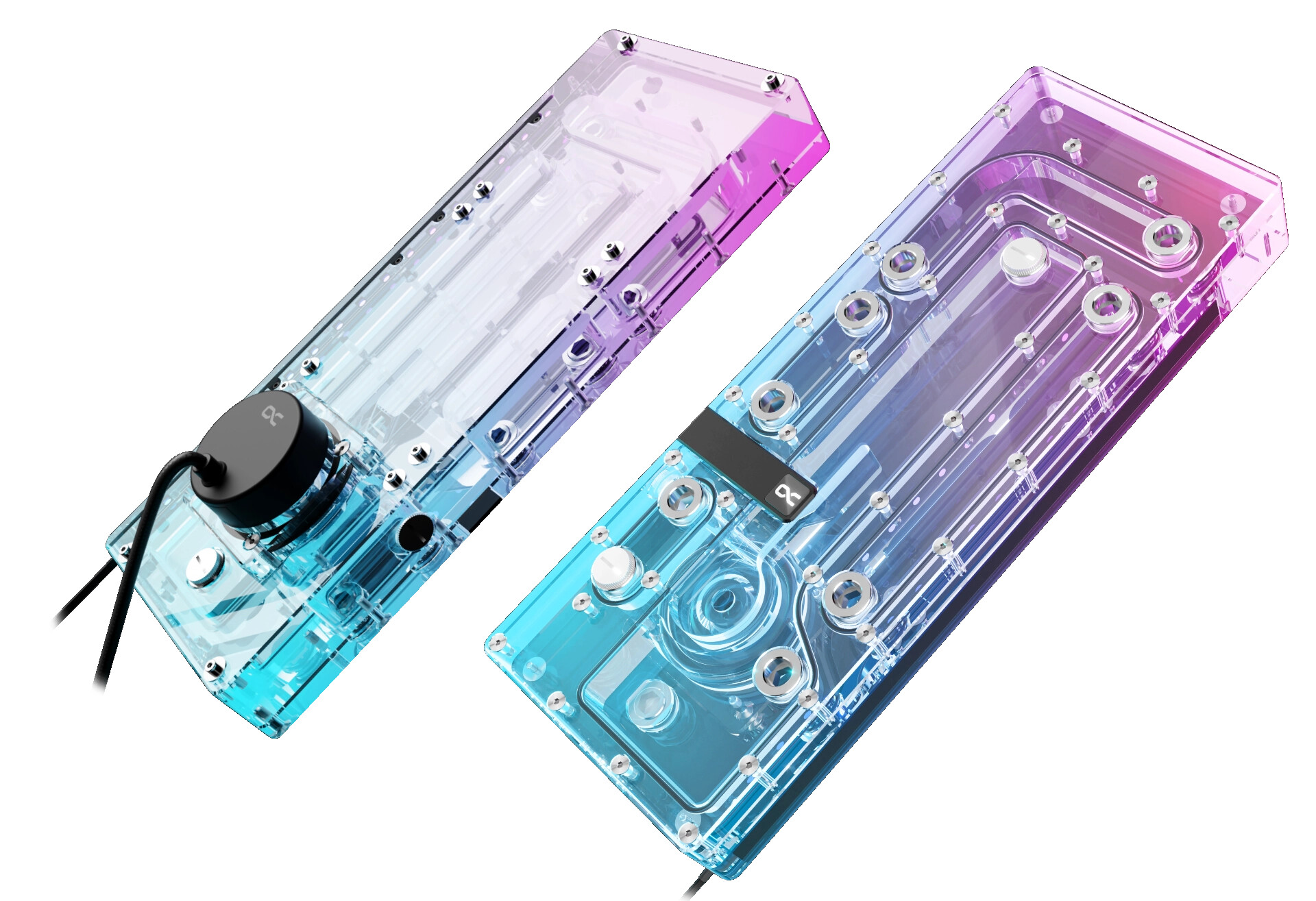

Alphacool has launched the Core Distro Plate, a stunning eye-catcher and must-have for water cooling in the O11 Dynamic Evo/XL case. This upgrade is specifically designed for the case and is mounted on the inner side panel. The Distro Plate simplifies the planning, construction, and maintenance of complex water loops. It features an integrated reservoir and an integrated VPP Apex pump, eliminating confusing and complicated tube routes.

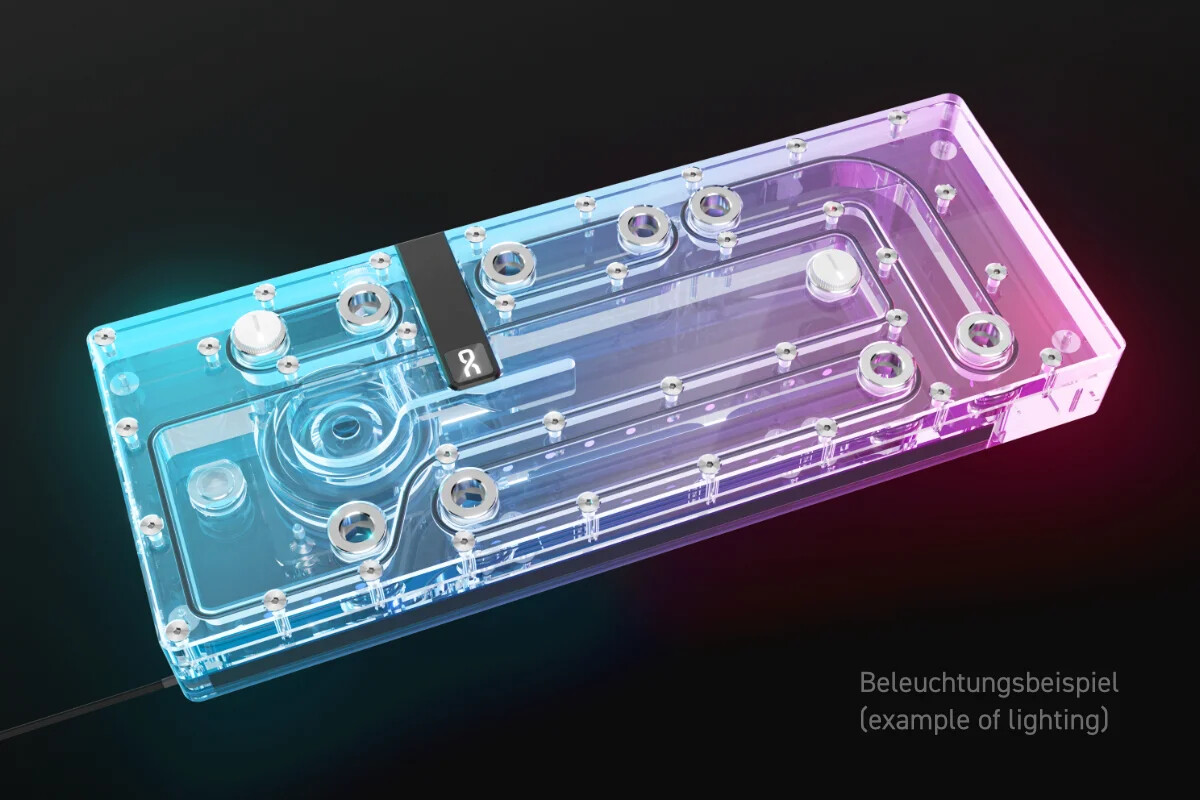

The chrome-plated, brass G1/4" connections are an elegant element of the Alphacool Core Design series. These connections are fitted with an O-ring and embedded in the acrylic, preventing possible leaks due to cracking. The Distro Plate is made of high-quality acrylic glass, allowing a clear view of the coolant. The acrylic also enables brilliant lighting thanks to the digitally addressable aRGB lighting.

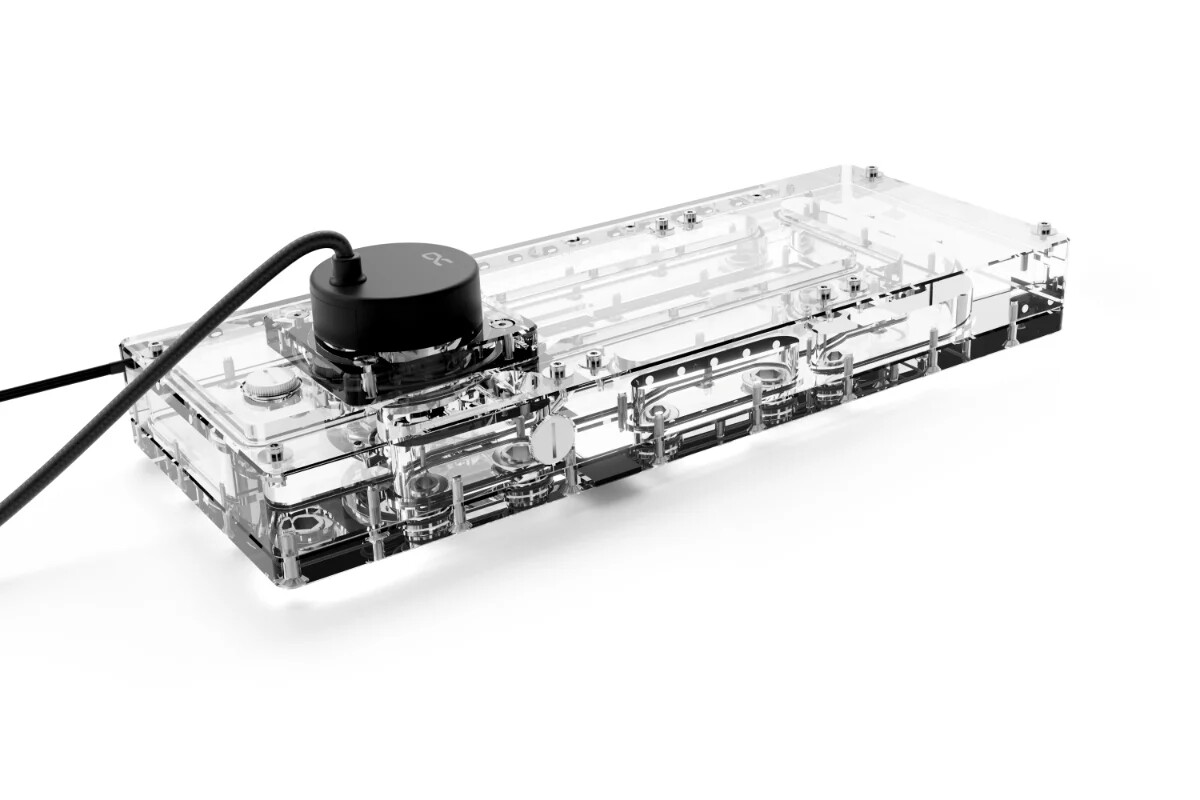

The integrated VPP Apex pump utilizes a smooth-running ceramic axle. The motor coils have been moved from the inside to the outside, resulting in a more stable and smoother running pump with significantly reduced vibrations. Additionally, the power consumption of the VPP Apex pump is lower than similar pumps on the market. The pump's speed range is controlled and read out via the 4-pin fan connection, and it is equipped with a SATA power connector.

The Core Distro Plate can be easily attached to the side panel of the O11 Dynamic Evo/XL case. It is also compatible with other cases, provided the dimensions match.

The Core Distro Plate O11 Dynamic Evo/XL with Apex VPP pump is now available in the Alphacool online store.

Features:

  • Dimensions (L x W x H): 360 x 141 x 77.80 mm
  • Volume: 200ml
  • Connections: 9x G1/4" female thread / 1x fill port / 1x drain port
  • Number of digital aRGB LEDs: 18

Features of the pump:

  • Pump housing material: Aluminium
  • Other materials: Plastic & ceramic
  • Control range: 2500-4500 RPM via 4-pin PWM
  • Maximum delivery head: 4.25 m
  • Maximum flow rate: 340 L/h
  • Operating voltage: 8-13 V DC (SATA Power Management)
